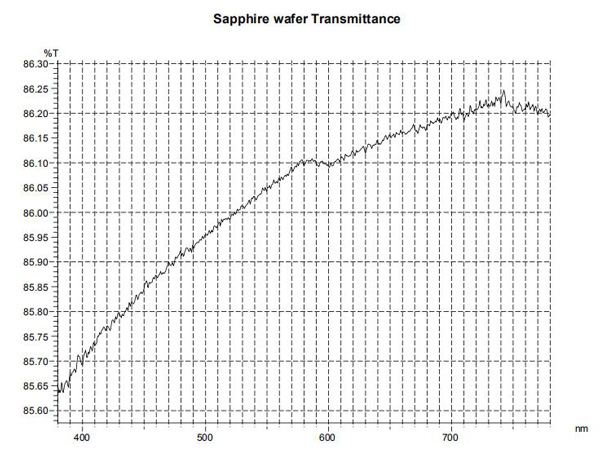

Sapphire has better light transmittance in the wavelength range of 0.20 - 5.50 μm and the infrared transmittance hardly changes with temperature. The sapphire window's transmittance CRYSCORE manufactures is higher than 85 % at 380 nm to 780 nm.
The sapphire windows with round shape produce by CRYSCORE have a series of excellent characteristics, such as high strength and hardness, the high-temperature resistance abrasives, good corrosion resistance ability, excellent light penetrability, and electric insulation performance. The maximum diameter we supply is up to dia. 290 mm.
| Crystal Materials | 99,999%, High Purity, Monocrystalline Al2O3 | |
| Grade | Prime, Epi-polished | |
| Orientation | C-plane(0001) or any orientation | |
| Diameter | Dia. 3.5 mm to 290 mm | |
| Thickness | 0.18 mm to 30 mm or any thickness | |
| Single Side Polished | Front Surface | Epi-polished, Ra < 0.2 nm (by AFM) |
| (SSP) | Back Surface | Fine ground, Ra = 0.8 μm to 1.2 μm |
| Double Side Polished | Front Surface | Epi-polished, Ra < 0.2 nm (by AFM) |
| (DSP) | Back Surface | Epi-polished, Ra < 0.2 nm (by AFM) |
| Cleaning / Packaging | Class 100 cleanroom cleaning and vacuum packaging, single piece packaging | |
Note: Custom sapphire windows with any orientation and any thickness can be provided.
CRYSCORE, an experienced sapphire windows supplier, will be your trustworthy partner, e-mail us now.
