Sapphire optical window has the excellent characteristics of high refractive index and low dispersion rate which provides the conditions for creating large-caliber advanced lenses.

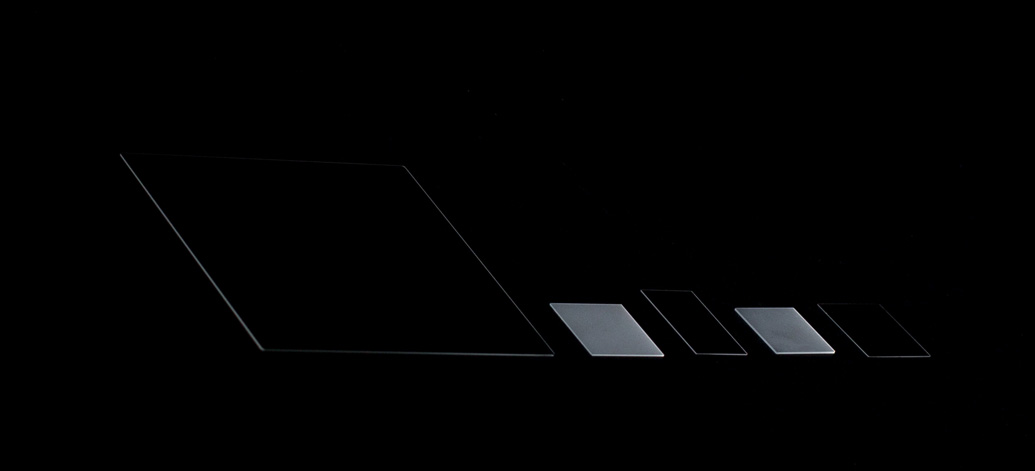

Cryscore can produce high-quality sapphire windows with any orientation, thickness and different sizes ranging from 3mm x 3mm to 200mm x 200mm. All of our sapphire windows have strict quality control, cleaned and packed in class 100 room.
| Item | Other Square & Rectangle Sapphire Windows |
| Crystal Materials | 99,999%, High Purity, Monocrystalline Al2O3 |
| Grade | Prime, Epi-polished |
| Orientation | C-plane(0001) or any orientation |
| Size | 3 mm x 3 mm to 200 mm x 200 mm |
| Thickness | 0.18 mm to 30 mm or any thickness |
| Front Surface | Optical polished, Scratch / Dig < 10 / 5 |
| Epi-polished, Ra < 0.2 nm (by AFM) | |
| Back Surface | Optical polished, Scratch / Dig < 10 / 5 |
| Epi-polished, Ra < 0.2 nm (by AFM) | |
| Cleaning / Packaging | Class 100 cleanroom cleaning and vacuum packaging, single piece packaging |
Note: Custom sapphire windows with any orientation and any thickness can be provided.
