The 8-inch sapphire wafers can enable chip makers to roll out more productivity, which will help them drive down costs dramatically.

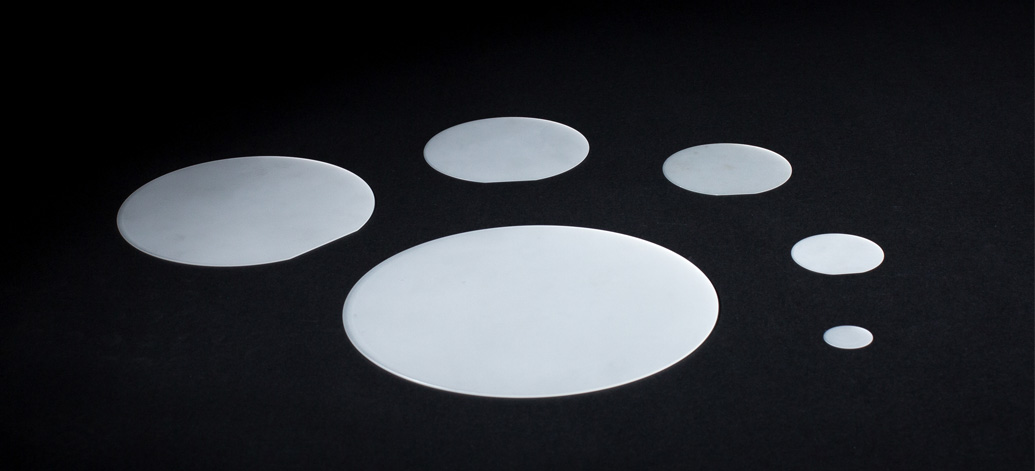

CRYSCORE is qualified to supply 8-inch epi-ready sapphire wafers. The common thickness is 1300 μm and 1500 μm.
Generally, this series of polished sapphire wafer has a notch instead of a major flat, but flat with custom length is also available. Our sapphire wafers are cleaned in class 100 cleanroom by ultrapure water with quality above 18MΩ *cm, and then packed in clean cassettes.
Item | 8-inch C-plane(0001) 1300μm Sapphire Wafers | |
Crystal Materials | 99,999%, High Purity, Monocrystalline Al2O3 | |
Grade | Prime, Epi-Ready | |
Surface Orientation | C-plane(0001) | |
C-plane off-angle toward M-axis 0.2 +/- 0.1° | ||
Diameter | 200.0 mm +/- 0.2 mm | |
Thickness | 1300 μm +/- 25 μm | |
Single Side Polished | Front Surface | Epi-polished, Ra < 0.2 nm (by AFM) |
(SSP) | Back Surface | Fine ground, Ra = 0.8 μm to 1.2 μm |
Double Side Polished | Front Surface | Epi-polished, Ra < 0.2 nm (by AFM) |
(DSP) | Back Surface | Epi-polished, Ra < 0.2 nm (by AFM) |
TTV | < 30 μm | |
BOW | < 30 μm | |
WARP | < 30 μm | |
Cleaning / Packaging | Class 100 cleanroom cleaning and vacuum packaging, | |
25 pieces in one cassette packaging or single piece packaging. | ||
Note: Custom sapphire wafers with any orientation and any thickness can be provided.
