Sapphire windows are widely used in medical science, communications, lasers, infrared, electronics, measuring instruments, military, aerospace, and other high-tech industries. Typical applications are gas and air monitors and analyzers, sensors and detectors, viewports, cover windows, bar code readers, and other optical applications.
CRYSCORE provides coated and uncoated high-quality sapphire windows with excellent performance, perfect for your applications.

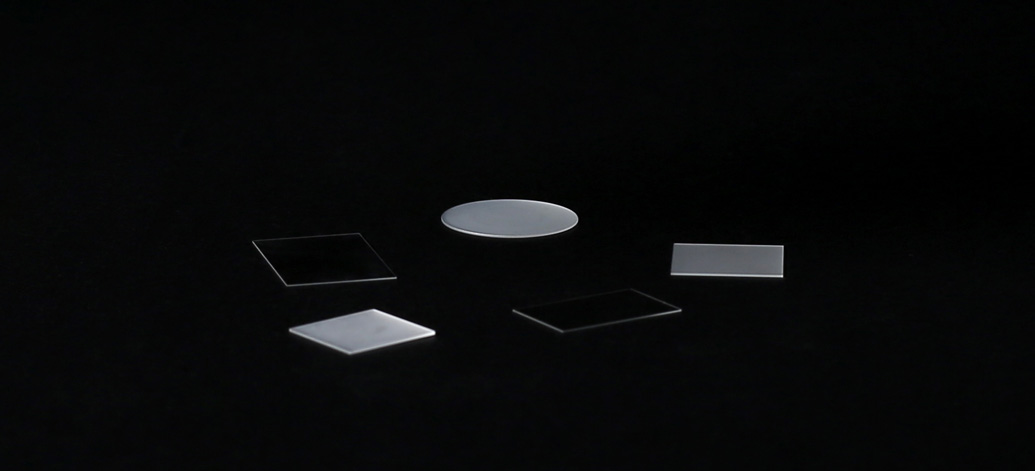

| Item | 10mm x 10mm C-plane(0001) 500μm Sapphire Windows |
| Crystal Materials | 99,999%, High Purity, Monocrystalline Al2O3 |
| Grade | Prime, Epi-Polished |
| Surface Orientation | C-plane(0001) |
| Size | 10.0 mm +/- 0.05 mm x 10.0 mm +/- 0.05 mm |
| Thickness | 500 μm +/- 25 μm |
| Front Surface | Optical polished, Scratch / Dig < 10 / 5 |
| Epi-polished, Ra < 0.2 nm (by AFM) | |
| Back Surface | Optical polished, Scratch / Dig < 10 / 5 |
| Epi-polished, Ra < 0.2 nm (by AFM) | |
| TTV | < 5 μm |
| BOW | < 5 μm |
| WARP | < 5 μm |
| Cleaning / Packaging | Class 100 cleanroom cleaning and vacuum packaging, single piece packaging. |
Note: Custom sapphire windows with any orientation and any thickness can be provided.
