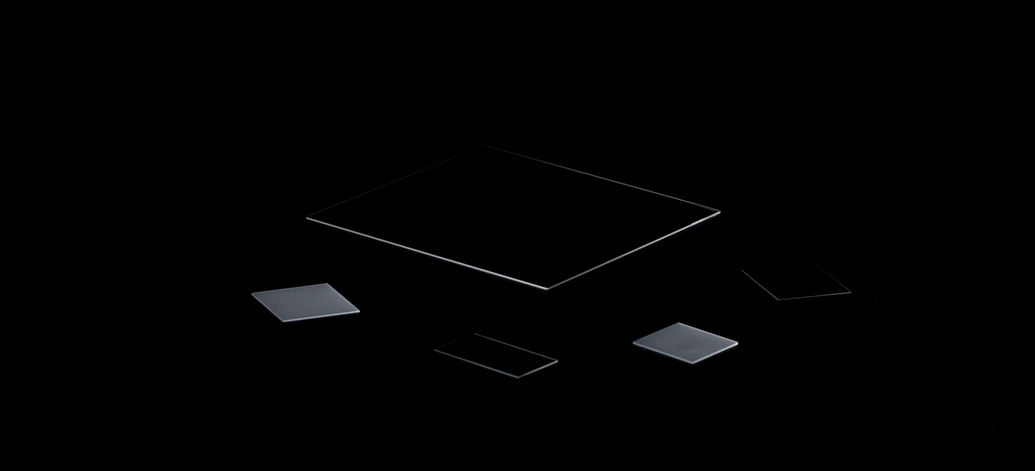

Besides the circle sapphire wafers, square and rectangle wafers are also available. We have supplied sapphire wafers with various sizes, 5mm x 5mm, 10mm x 10mm, 10mm x 15mm, 15mm x 20mm, etc. All the wafers are polished to an extremely smooth damage-free surface on one side or two sides so they have very good performance in GaN epitaxial growth by epitaxial manufacturers and researchers.
So far, C-plane (0001) is the orientation commonly used, for the mature technology of sapphire crystal growth along the C-axis, lower cost, steady physical, and chemical properties. CRYSCORE can also supply other orientations such as A-plane(11-20), M-plane(10-10), R-plane(1-102), N-plane(11-23), V-plane(22-43), etc.
Item | 10mm x 10mm R-plane 500μm sapphire wafer | |
Crystal Materials | 99,999%, High Purity, Monocrystalline Al2O3 | |
Grade | Prime, Epi-polished | |
Surface Orientation | R-plane(1-102) | |
Size | 10 mm +/- 0.05 mm x 10 mm +/- 0.05 mm | |
Thickness | 500 μm +/- 25 μm | |
Front Surface | Epi-polished, Ra < 0.5 nm (by AFM) | Epi-polished, Ra < 0.5 nm (by AFM) |
Back Surface | Fine ground, Ra = 0.8 μm to 1.2 μm | Epi-polished, Ra < 0.5 nm (by AFM) |
TTV | < 5 μm | |
BOW | < 5 μm | |
WARP | < 5 μm | |
Cleaning / Packaging | Class 100 cleanroom cleaning and vacuum packaging, single piece packaging. | |
Note: Custom sapphire wafers with any orientation and any thickness can be provided.
