Compared with glass windows, sapphire optical windows have superior abrasion resistance, toughness, and fracture resistance.
The sapphire windows we produce are from sapphire crystal grown by the Kyropoulos method. We can provide processing services as well, for example: according to customer requirements to surface finish polishing, edge chamfer, laser cutting, coatings-addition, subtraction or customization.

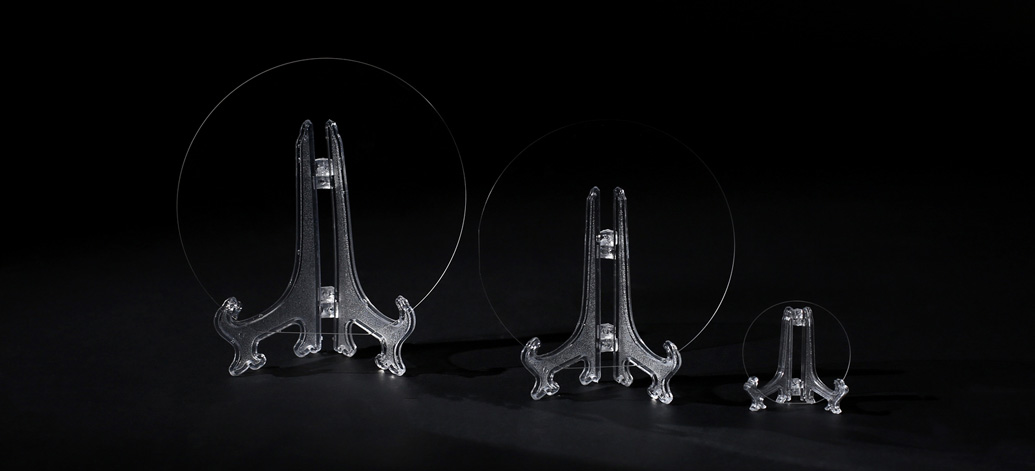

| Item | 0.5-inch C-plane(0001) 430μm Sapphire Windows |
| Crystal Materials | 99,999%, High Purity, Monocrystalline Al2O3 |
| Grade | Prime, Epi-Polished |
| Surface Orientation | C-plane(0001) |
| Diameter | 12.7 mm +/- 0.1 mm |
| Thickness | 430 μm +/- 25 μm |
| Front Surface | Optical polished, Scratch / Dig < 10 / 5 |
| Epi-polished, Ra < 0.2 nm (by AFM) | |
| Back Surface | Optical polished, Scratch / Dig < 10 / 5 |
| Epi-polished, Ra < 0.2 nm (by AFM) | |
| TTV | < 10 μm |
| BOW | < 10 μm |
| WARP | < 10 μm |
| Cleaning / Packaging | Class 100 cleanroom cleaning and vacuum packaging, single piece packaging. |
Note: Custom sapphire windows with any orientation and any thickness can be provided.
CRYSCORE, your trustworthy sapphire windows manufacturer, contact us now.
